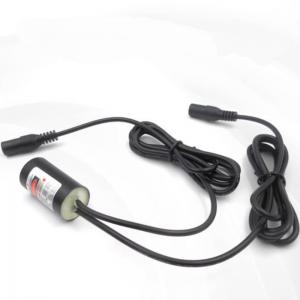

12X50mm520nm5mW line laser positioning light laser module

  • Product Item : SB245205L
  • Category: Line Laser module
  • Size: D12x50mm(other sizes can be customized)
  • Material: Aviation aluminum (all metal shell)
  • Output wavelength: 520nm × 10nm(other wavelengths can be customized)
  • Exit pupil power: <5mw(other power can be customized)
  • Attachment INQUIRY   EMAIL
Range: <3 m (indoor environment, laser line clarity will be affected by ambient light interference)

Spot shape and size: one-line light, adjustable light thickness

(can be focused according to customer requirements distance, get the best effect)

Light diffusion Angle: 5°, 15°, 30°, 45°, 60°, 90 ", 110°(Optional) The default is 90
Focusing mode: external focusing
Circuit control: APC line
Operating voltage: 9~25VDC
Working current: I<120mA
Operating temperature: -10C~+50℃
Storage temperature: -20C~+70'C
Service life: continuous output/use >10000 hours

Tail wire: 26# red and black electronic wire about 15cm long

(together with the power adapter, with 1 meter long DC female plug wire)

Security level: CLASS IIIA

Uses: Can be used in industrial laser positioning, sights, laser flashlight,

instruments and equipment, medical equipment (health instrument), military, security,

stage lighting, tools, U disk, mobile phone, projection teaching page turning pen,

temperature measurement (ranging) instrument, leveling instrument, marking instrument,

 level, electronic production enthusiasts, indoor and outdoor decoration products.
