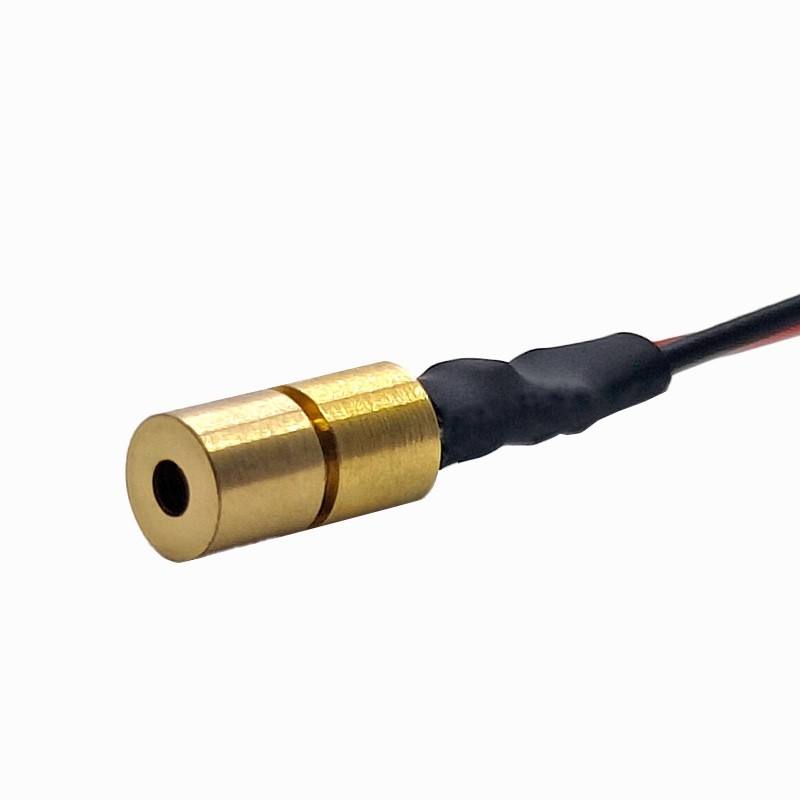

  • 4X13.7mm650nm 5MW laser module infrared red laser head
  • 4X13.7mm650nm 5MW laser module infrared red laser head
  • 4X13.7mm650nm 5MW laser module infrared red laser head
  • 4X13.7mm650nm 5MW laser module infrared red laser head
4X13.7mm650nm 5MW laser module infrared red laser head4X13.7mm650nm 5MW laser module infrared red laser head4X13.7mm650nm 5MW laser module infrared red laser head4X13.7mm650nm 5MW laser module infrared red laser head

4X13.7mm650nm 5MW laser module infrared red laser head

  • Product Item : 650NM5MWDOT
  • Category: Dot laser module

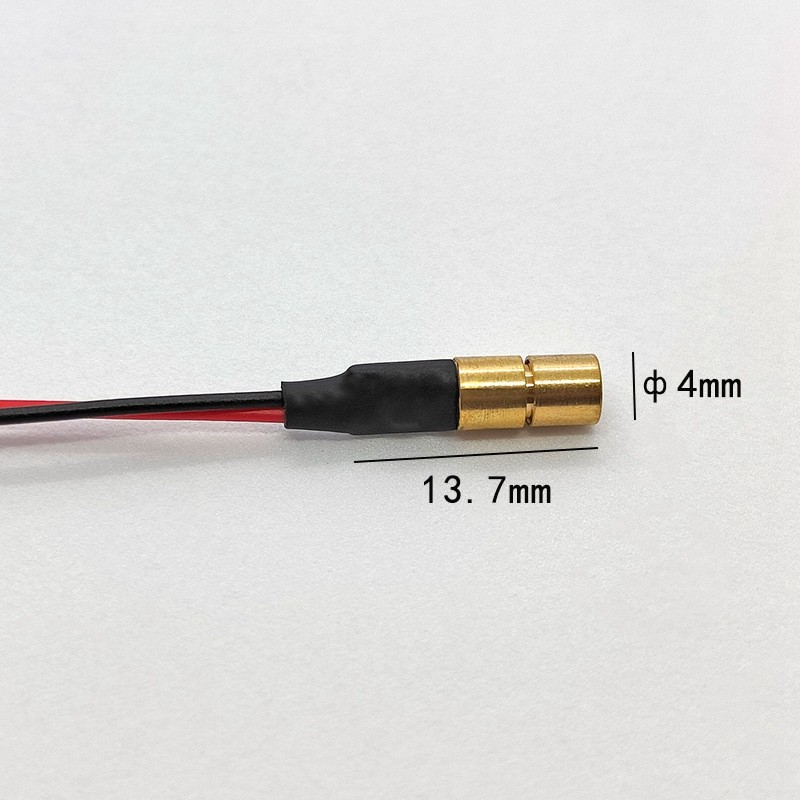

  • Specification: 4x13.7mm 650nm 5MW dot type
  • Installation method: Plug-in installation
  • Supply voltage: 2.8V to 5.2V
  • Wavelength: 650nm
  • INQUIRY   EMAIL
Material: copper (Full Metal Housing)
Surface Treatment/Color: Copper-colored shell,(can produce black shell)
Output Wavelength: 650nm±10nm (Custom Wavelengths Available: 635nm, 780nm,850nm, 980nm)
Exit Pupil Power: <5mW (Custom Powers Available)
Range: <100 Meters (Indoor Environment; Distance May Vary Due to Ambient Light Interference)
Spot Shape & Size: Dot/Elliptical,  ( Customer-Required Distance for Optimal Performance)
Focus Mode: Adjustable Focus or Fixed Focus
Circuit Control: APC line(can custom TTL)
Operating Voltage: 2.8~5.2VDC
Operating Current: I <35mA
Working Temperature:-10℃~+50℃
Storage Temperature: -20℃~+70℃
Service Life: Continuous Operation >10,000 Hours

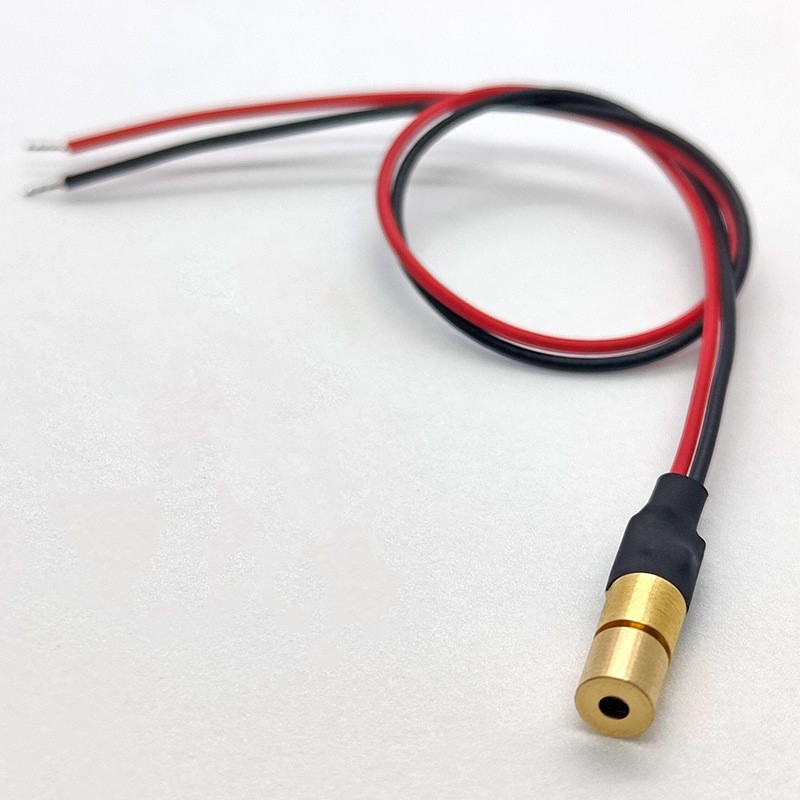

Tail Wires: 28# Red/Black Wires, ~15cm Length (1m DC Female Plug Cable Included When Purchased with Power Adapter)
Safety Class: Class IIIA
Package Content: 1 Laser Module

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights,

Instruments & Equipment, Medical Devices (Healthcare Equipment), Military Use,

Anti-Counterfeiting & Security, Stage Lighting, Tools, USB Drives, Mobile Phones,

Presentation Clickers, Temperature (Distance) Measuring Instruments, Laser Levels,

Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
