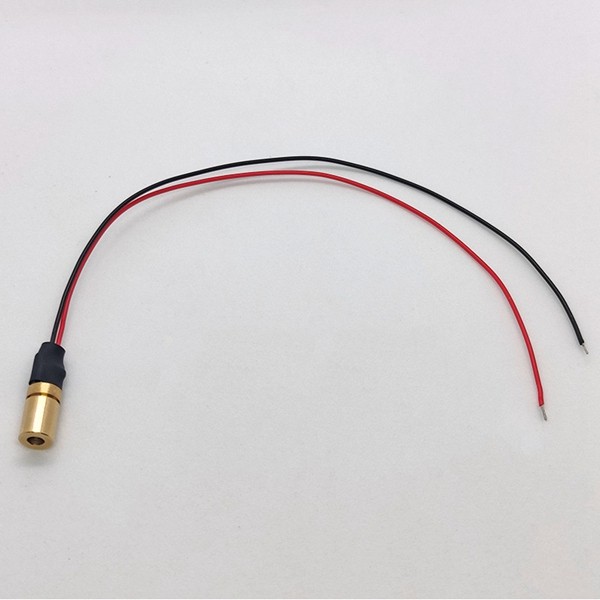

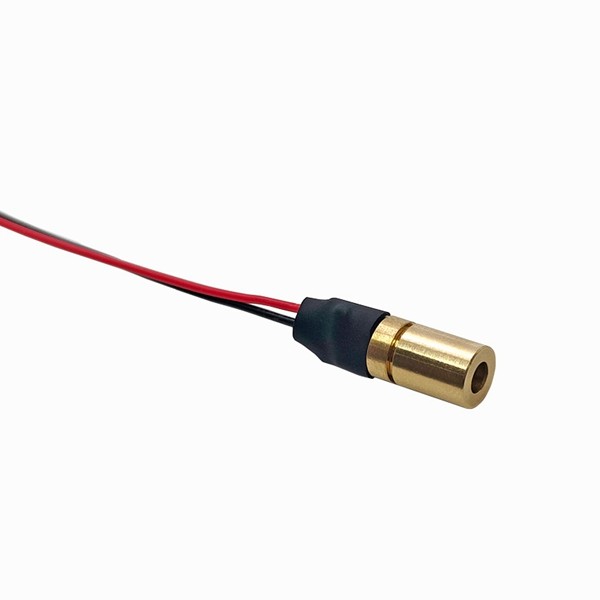

  • 6.5x10mm 650nm 5MW red laser module
  • 6.5x10mm 650nm 5MW red laser module
  • 6.5x10mm 650nm 5MW red laser module
  • 6.5x10mm 650nm 5MW red laser module
6.5x10mm 650nm 5MW red laser module6.5x10mm 650nm 5MW red laser module6.5x10mm 650nm 5MW red laser module6.5x10mm 650nm 5MW red laser module

6.5x10mm 650nm 5MW red laser module

  • Product Item : 650NM5MW 6.5X10MM
  • Category: Dot laser module

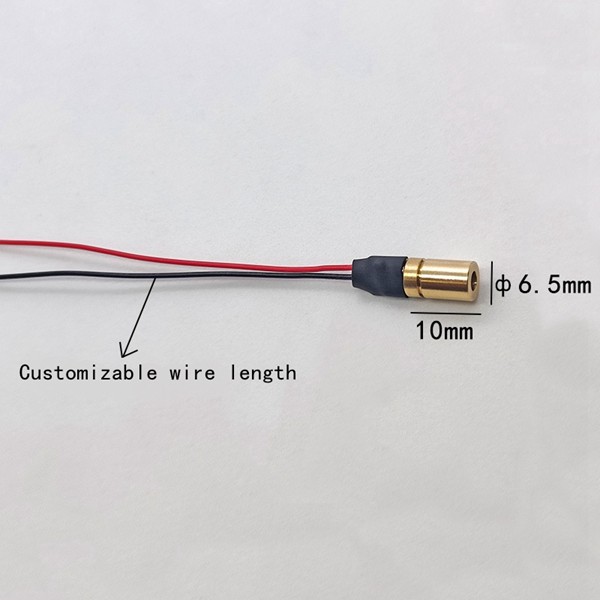

  • Specification: 6.5x10mm, 650nm, 5MW dot
  • Installation method: Plug-in installation
  • Wavelength: 650nm
  • Supply voltage: 2.8V to 5.2V
  • INQUIRY   EMAIL

Output wavelength: 650nm ± 10nm

(Other wavelengths can be customized,)

Exit pupil light power: <5mw(Other powers can be customized)

Range: <100meters (In indoor environments,

lasers may be disturbed by ambient light, so the distance may vary.)

Spot shape and size:dot Oval(Focus is adjustable per customer’s distance needs.)
Focusing mode:  fixed focus or Adjustable focus
Circuit control: APC circuit
Working voltage: 2.1-2.5VDC
Working current: I<35mA
Operating temperature: -10 ° C to +50 ° C
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours
Safety level: CLASS IIIA
Package content: One laser

Applications: Industrial Laser Positioning, Sighting Devices,

Laser Flashlights, Instruments & Equipment, Medical Devices

(Healthcare Equipment), Military Use, Anti-Counterfeiting & Security,

Stage Lighting, Tools, USB Drives, Mobile Phones, Presentation Clickers,

emperature (Distance) Measuring Instruments, Laser Levels,

Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
