Dot laser module

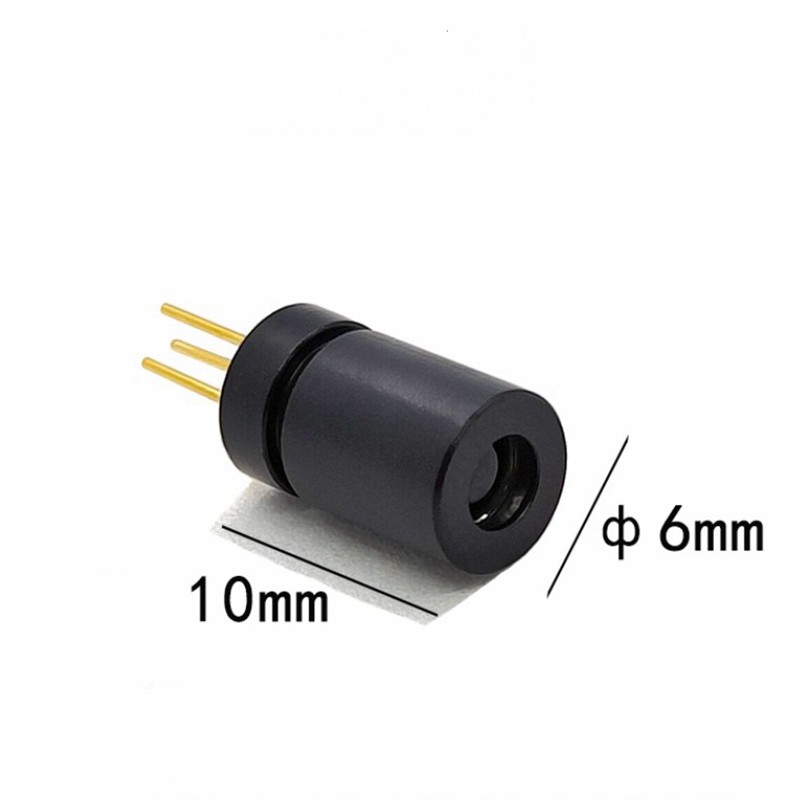

6×10mm 650nm 5mW focus-adjustable 3-pin through-hole red laser module

6×10mm 650nm 5mW focus-adjustable 3-pin through-hole red laser module

Product Item : 650/5MW6X10
Category： Dot laser module
6×10mm 650nm 5mW focus-adjustable 3-pin through-hole red laser module Specifications: 6×10mm, 650nm, 5mW, 3 pins Mounting type: Through-hole mounting Wavelength: 650nm Supply voltage: 2.1V~2.5V Maximu
Mounting type: Through-hole mounting
Package specification: Cylindrical (6.0mm diameter)
Product certification: Compliant with RoHS standards
Attachment INQUIRY EMAIL

Material: Aviation aluminum (all-metal housing)
Output wavelength: 650nm±10nm (other wavelengths can be customized)
Exit pupil optical power: <5mW (other powers can be customized)
Range: <100 meters (indoor environment; laser range may vary due to ambient light interference)

Light spot shape and size: Dot-shaped light, elliptical, <12mm at 10m

(focusing effect can be optimized at customer-specified distances)

Focusing method: Adjustable focus or fixed focus (optional; default is adjustable focus)

Circuit control: APC circuit（This module does not come with a driver.

Please contact the seller if a driver board is needed.）

Operating voltage: 2.1~2.5VDC
operating current：l<20mA
Storage temperature: -20℃~+70℃
Safety class: CLASS IIIA
Package contents: 1 laser

Applications: Can be used in industrial laser positioning, sights, laser flashlights,

instruments and equipment, medical equipment (health care devices),

military, anti-counterfeiting and security, stage lighting, tools, USB drives,

mobile phones, projection teaching pointers, temperature measuring (distance measuring) instruments,

laser levels, line lasers, level rulers, electronic production enthusiasts, indoor and outdoor decoration, etc.
