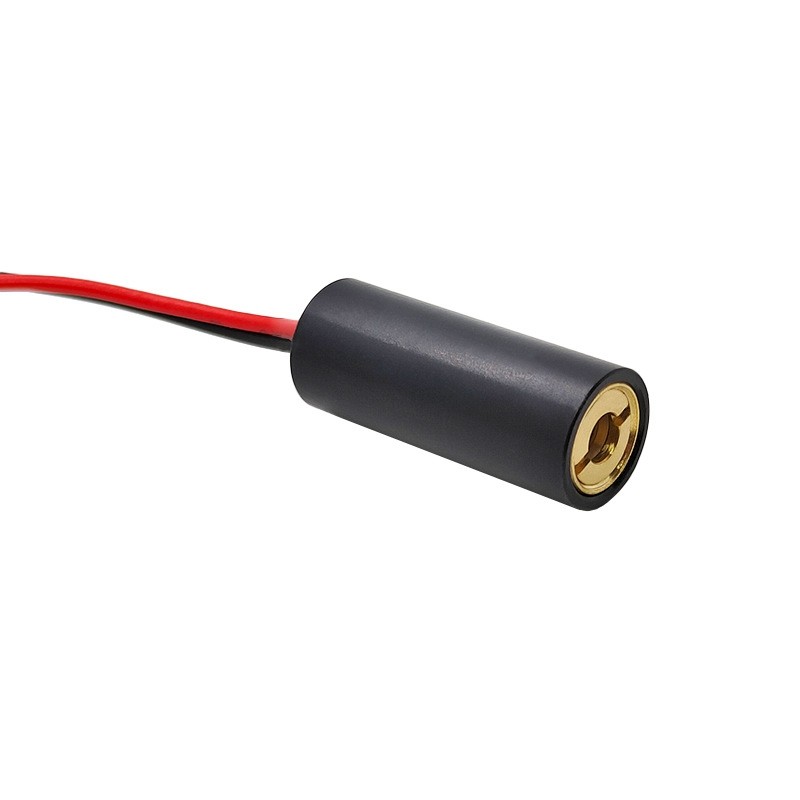

Product Model: RP67010D

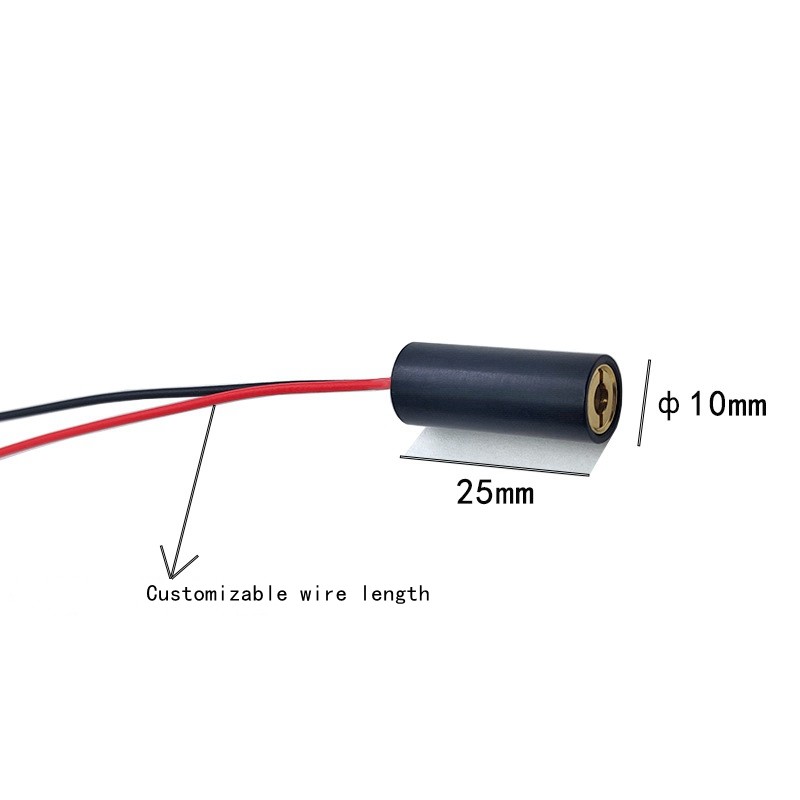

Dimension: Ф10×25mm (Custom Sizes Available)
Material: Aviation Aluminum (Full Metal Housing)
Surface Treatment/Color: Black, Insulating Oxide Matte Black Finish
Output Wavelength: 670nm±10nm (Custom Wavelengths Available）
Exit Pupil Power: <10mW (Custom Powers Available)
Range: <200 Meters (Indoor Environment; Distance May Vary Due to Ambient Light Interference)
Spot Shape Size: Dot/Elliptical at 10mm <12m

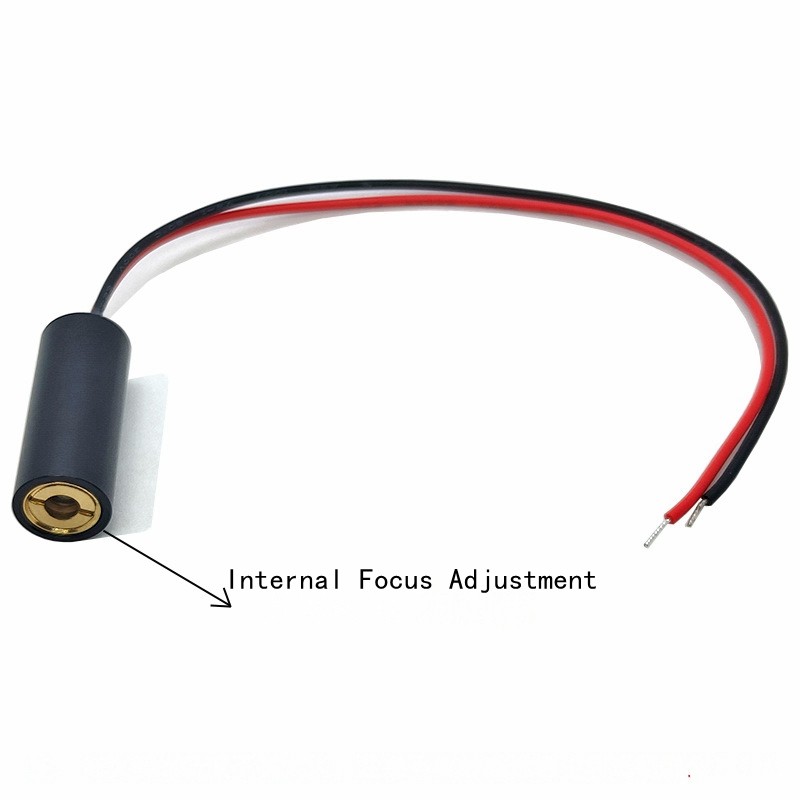

Focus Mode: Adjustable Focus or fixed focus
Circuit Control: APC line (can customTTL )
Operating Voltage: 2.8~5.2VDC
Operating Current: l<35mA
Operating Temperature: -10℃~+50℃
Storage Temperature: -20℃~+70℃
Service Life: Continuous Operation >10,000 Hours
Tail Wires: 26# Red/Black Wires, ~15cm Length
(1m DC Female Plug Cable Included When Purchased with Power Adapter)
Safety Class: Class IIIB
Package Content: 1 Laser Module
Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights,
Instruments & Equipment, Medical Devices (Healthcare Equipment), Military Use,
Anti-Counterfeiting & Security, Stage Lighting, Tools, USB Drives, Mobile Phones,
Presentation Clickers, Temperature (Distance) Measuring Instruments,
Laser Levels, Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
Product Model: SA59050D
Dimension: Ф10×30mm (Custom Sizes Available)
Material: Aviation Aluminum (Full Metal Housing)
Surface Treatment/Color: Black, Insulating Oxide Matte Black Finish
Output Wavelength: 905nm±10nm (Custom Wavelengths Available: 6nm, 650nm, 808nm, 850nm, 980nm)
Exit Pupil Power: <10mW (Custom Powers Available)
Range: <200 Meters (Indoor Environment; Distance May Vary Due to Ambient Light Interference)
Spot Shape Size: Dot/Elliptical, <10mm at 12m
Focus Mode: Adjustable Focus
Circuit Control: TTL Signal Frequency-Modulable Circuit (Modulation Frequency: 0~100KHz)
Operating Voltage: 2.8~5.2VDC
Operating Current: l<45mA
Operating Temperature: -10℃~+40℃
Storage Temperature: -20℃~+70℃
Service Life: Continuous Operation >10,000 Hours
Tail Wires: 26# Red/Black/Yellow Wires, ~15cm Length
(1m DC Female Plug Cable Included When Purchased with Power Adapter)
Safety Class: Class IIIB
Package Content: 1 Laser Module
Applications: Industrial Laser Positioning, Sighting Devices,
Laser Flashlights, Instruments & Equipment, Medical Devices (Healthcare Equipment),
Military Use, Anti-Counterfeiting & Security, Stage Lighting, Tools, USB Drives,
Mobile Phones, Presentation Clickers, Temperature (Distance)
Measuring Instruments, Laser Levels, Line Lasers, Spirit Levels,
Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
