Dot laser module

10×30mm 780nm 50mW Internal-Focus Infrared Laser Module

10×30mm 780nm 50mW Internal-Focus Infrared Laser Module

Product Item : 78050D
Category： Dot laser module

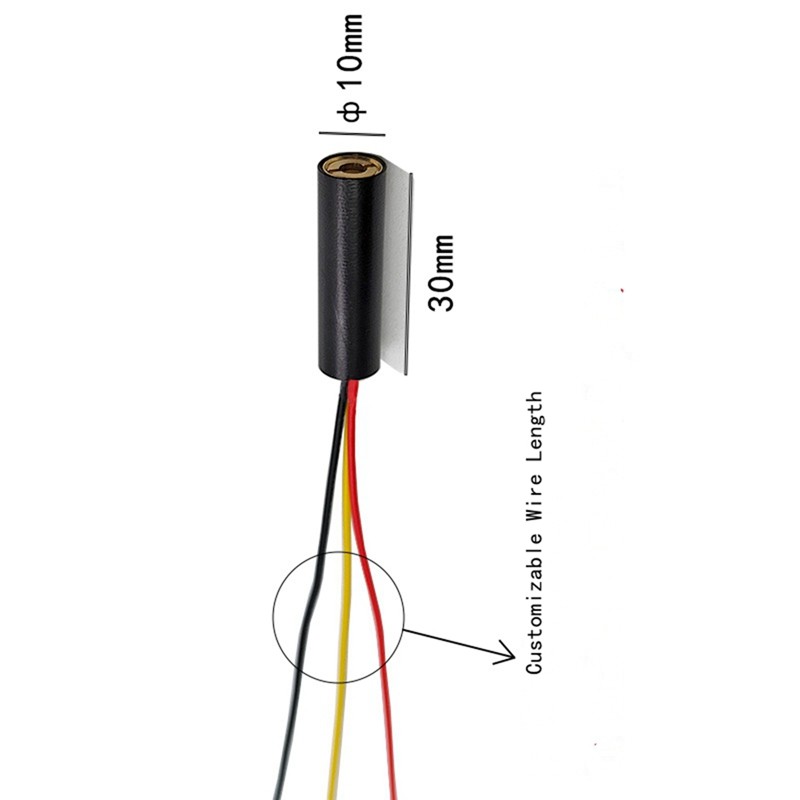

Package Specification: Cylindrical (10.0mm Diameter)
Specification: 10×30mm 780nm 50mW Dot Type
Mounting Type: Plug-in Installation
Maximum Output Power: 50mW
INQUIRY EMAIL

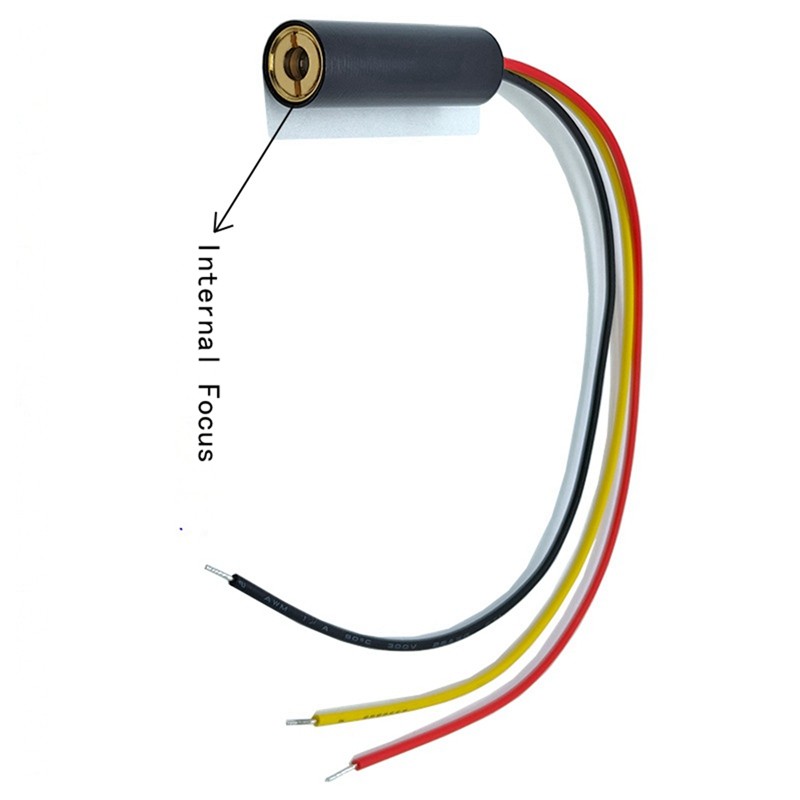

Focus Mode: Adjustable Focus or Fixed Focus (Optional; Adjustable Focus as Standard)
Circuit Control: TTL Signal Frequency-Modulable Circuit (Modulation Frequency: 0~100KHz)
Operating Voltage: 2.8~5.2VDC
Operating Current: <120mA
Storage Temperature: -20℃~+70℃
Service Life: Continuous Operation >10,000 Hours

Tail Wires: 26# Red/Black/Yellow Wires, ~15cm Length (1m DC Female Plug

Cable Included When Purchased with Power Adapter)

Safety Class: Class IIIB
Package Content: 1 Laser Module

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights,

Instruments & Equipment, Medical Devices (Healthcare Equipment), Military Use,

Anti-Counterfeiting & Security, Stage Lighting, Tools, USB Drives, Mobile Phones,

Presentation Clickers, Temperature (Distance) Measuring Instruments, Laser Levels,

Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.

Tags: Focus-Infrared-Laser-Module
