Specification: 10X22mm635nm5mW
Laser shape: point
Installation mode: Connect positive and negative terminals
Wavelength: 635nm
Supply voltage: 2.8V~5.2V
Maximum output power: 5mW
Package size: Cylindrical (10.0mm diameter)
Number of ports: 1 port
Product series: Laser module
Rated current: less than 50mA
Rated power: less than 5mW
Type: Laser module
Product certification: in line with RoHS standards
Accessory type: Laser head
Model: SA56355D
Operating temperature: -10℃~+40℃
PRODUCT SPECIFICATION PARAMETER DESCRIPTION
Product model:RP SA56355D

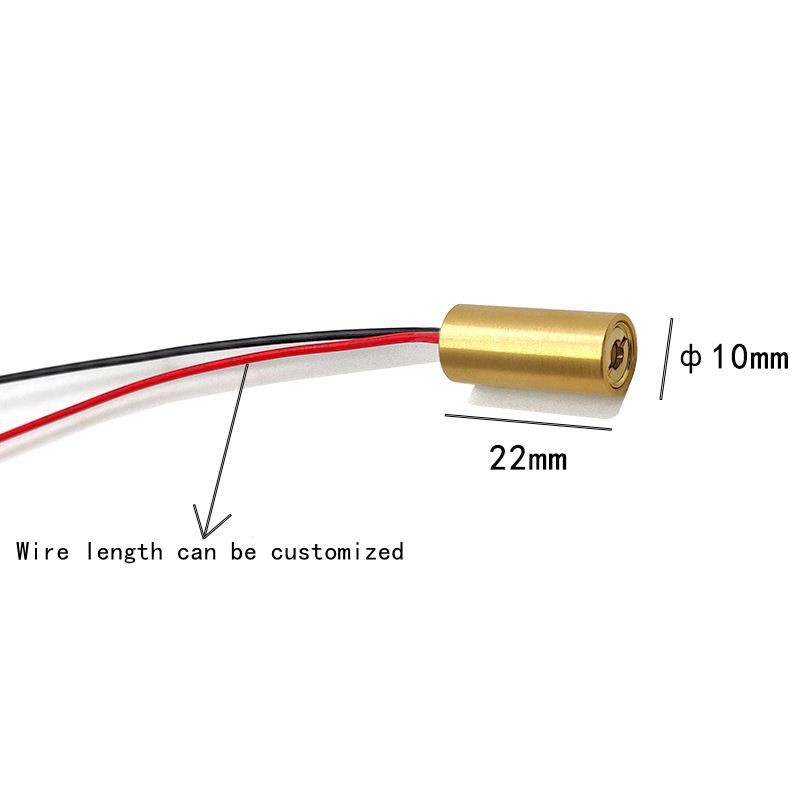

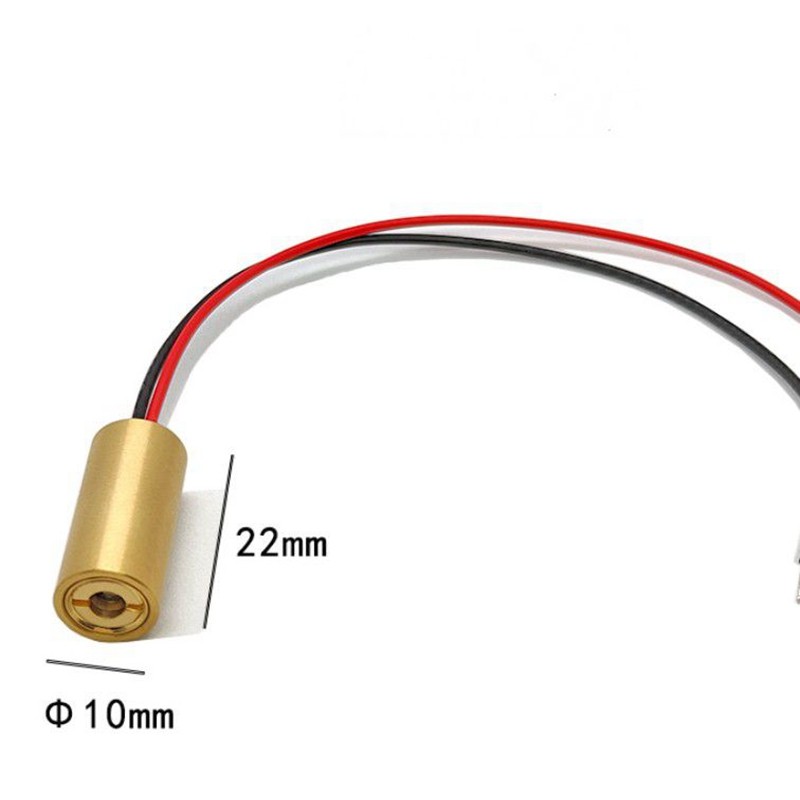

Size: Diameter 10x22mm(other sizes can be customized)

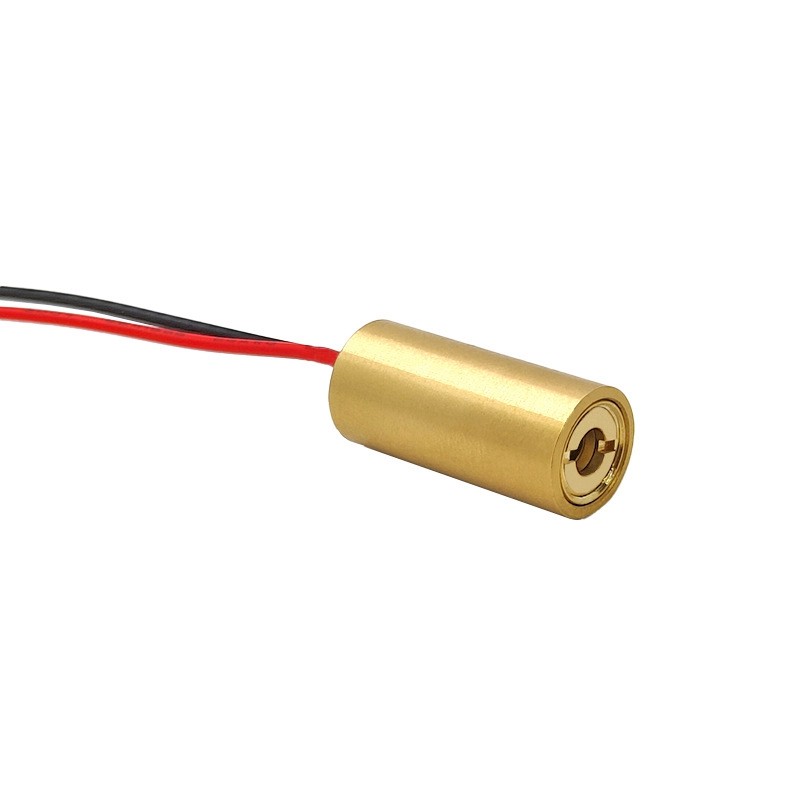

Material: Copper (all metal shell)
Finish/Color: Bronze shell (natural)
Output wavelength: 635nm × 10nm(other wavelengths can be customized)
Exit pupil power: 5mw(other power can be customized)
Range: <100 meters (indoor environment, laser will be affected by ambient light interference, distance is different)
Spot shape and size: spot light, oval, 10m <12mm(can be focused according to the distance required by the customer, the best effect)

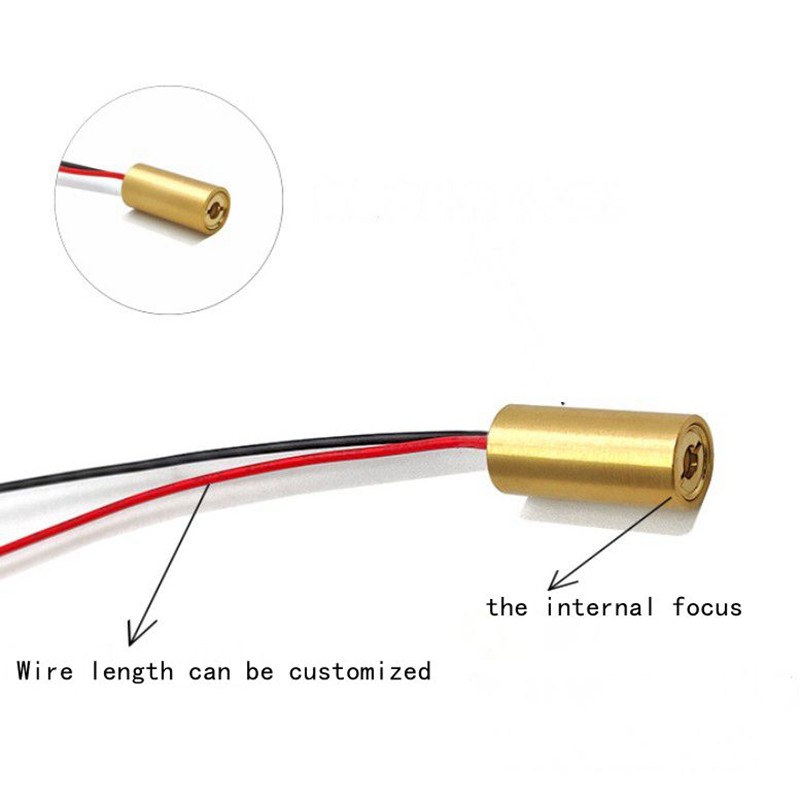

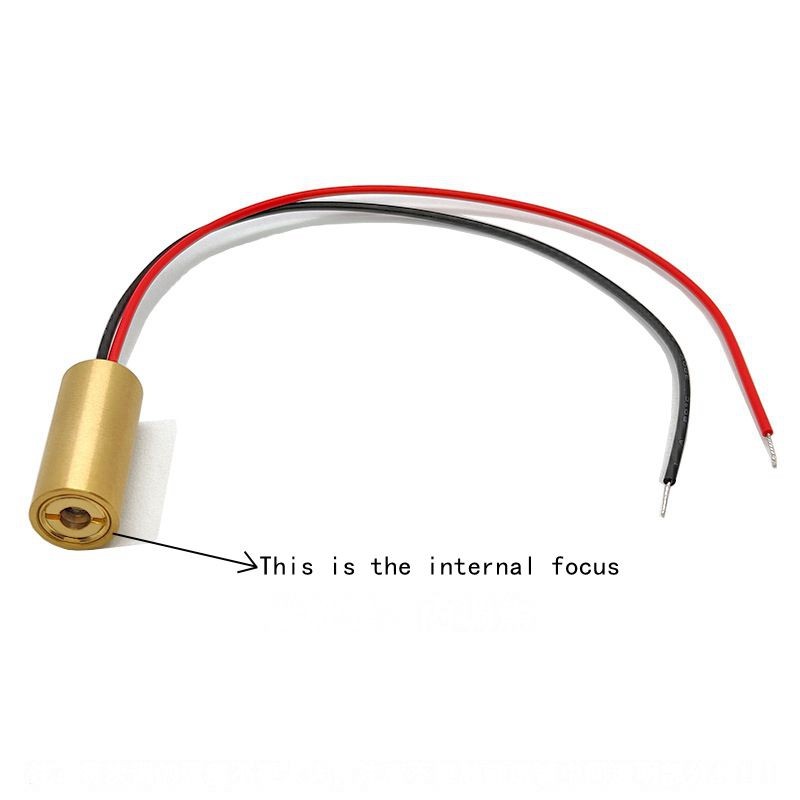

Focusing mode: Adjustable focus or fixed focus (optional, the default is adjustable focus,)
Circuit control: APC line (TTL can be customized)
Operating voltage: 2.8~ 5.2VDC
Working current: I <50mA
Operating temperature :-10℃~+40℃
Storage temperature :-20'℃~+70'℃
Service life: continuous output/use > 10000 hours
Tail wire :26# red and black electronic wire about 15cm long
(together with the power adapter, with 1 meter long DC female plug wire)
Security level :CLASS IIIA
Packaging content: One laser
Purpose:
It can be used for industrial laser positioning, sights, laser flashlight, instruments and equipment,
medical equipment (health instrument) military, security, stage lighting, tools, U disk, mobile phone,
projection teaching page turning pen, temperature measurement (ranging) instrument, leveling instrument,
marking instrument, level, electronic production enthusiasts, indoor and outdoor decoration and other products.
