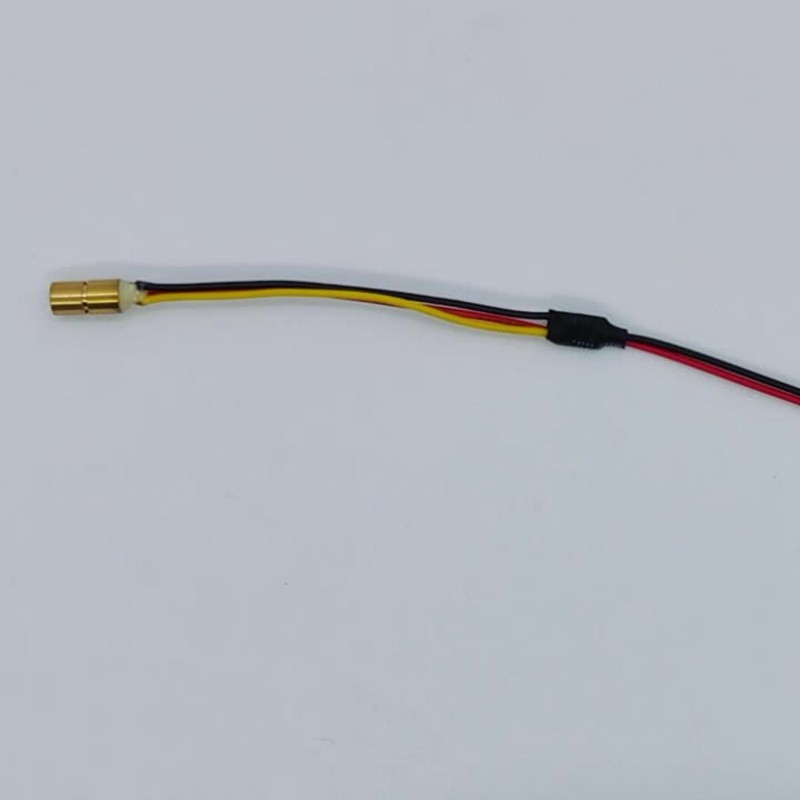

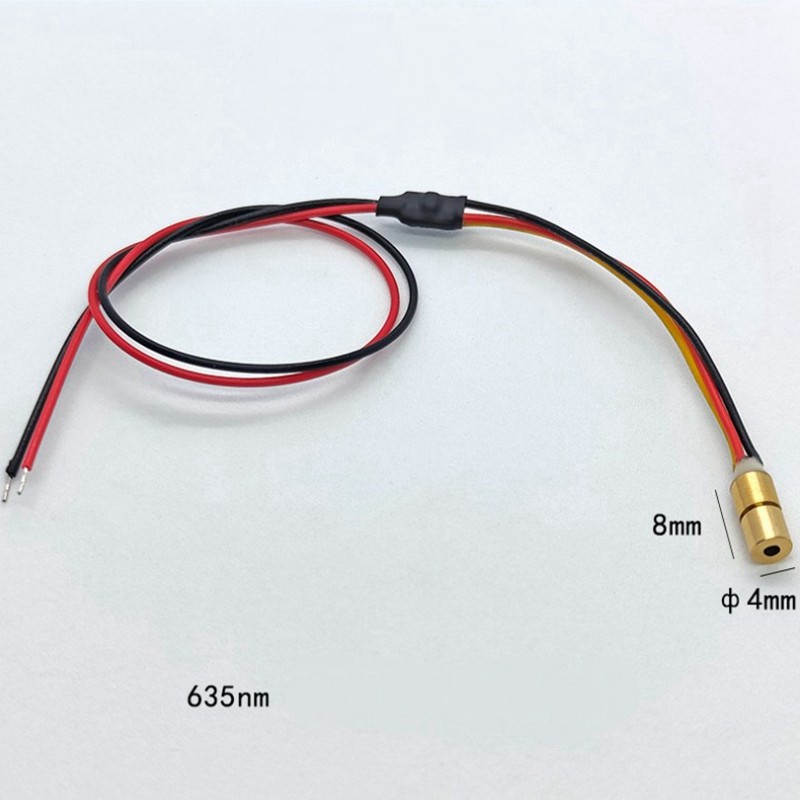

4X8mm 635nm 1MWlaser module laser head

Exit pupil light power: 1mw(Other powers can be customized)
Range: <50 meters (In indoor environments, lasers may be disturbed by ambient light, so the distance may vary.)
Spot shape and size: Dot light, oval (can be focused at the distance required by the customer for the best effect)
Focusing mode: Adjustable focus or fixed focus
Circuit control: APC circuit (customizable TTL)
Working voltage: 1.5-3VDC
Working current: I<30mA
Operating temperature: -10 ° C to +40 ° C
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours

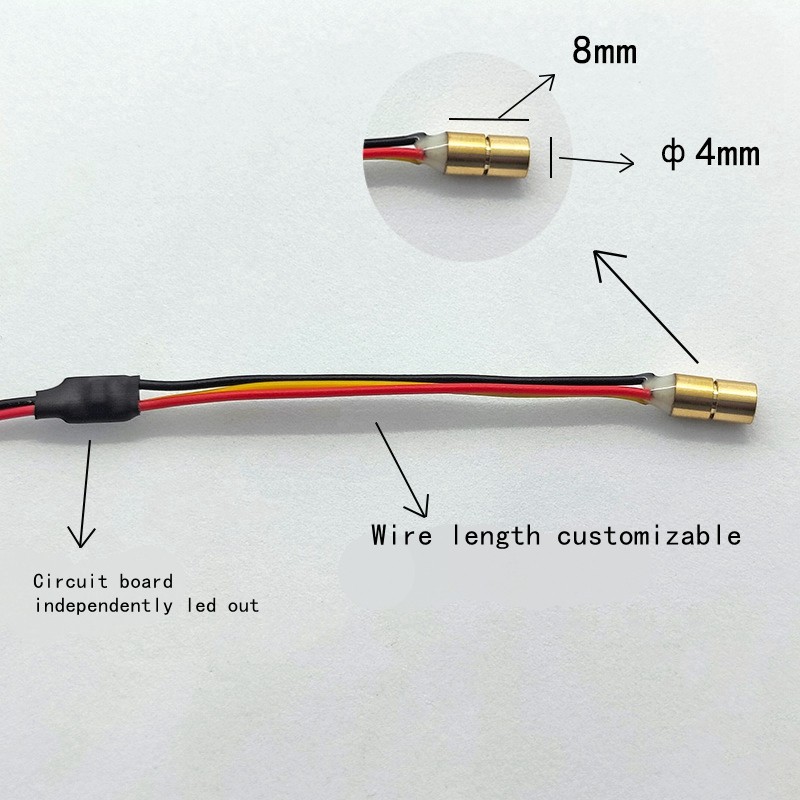

Tail wire: 28# red and black electronic wire, approximately 15cm long

(photographed together with the power adapter, it comes with a 1-meter-long DC female plug wire)

Safety level: CLASS II
Package content: One laser

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights, Instruments &

Equipment, Medical Devices (Healthcare Equipment), Military Use, Anti-Counterfeiting &

Security, Stage Lighting, Tools, USB Drives, Mobile Phones, Presentation Clickers, Temperature

(Distance) Measuring Instruments, Laser Levels, Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
