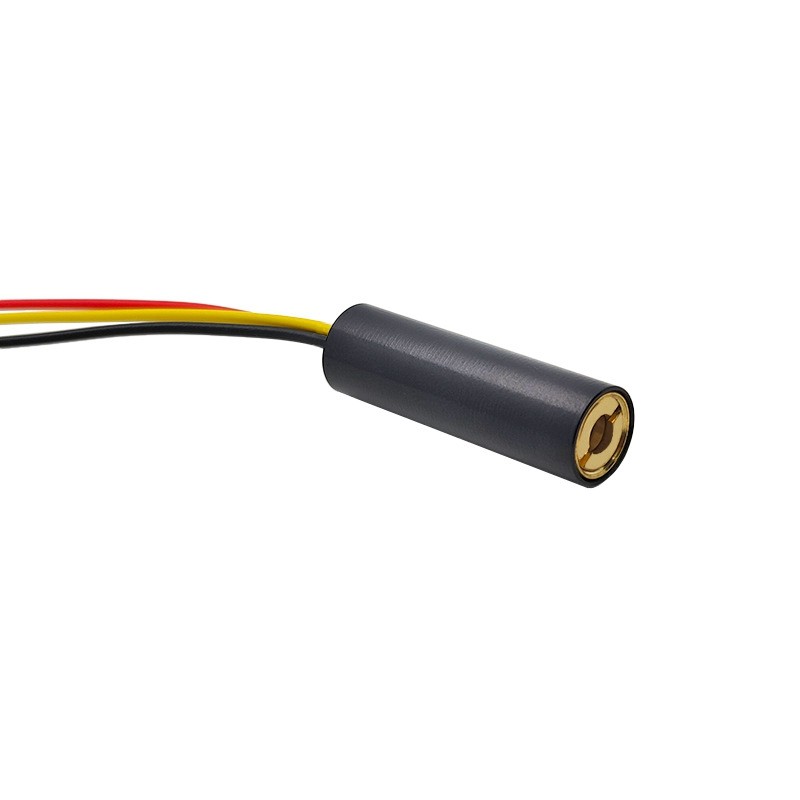

10x30mm 850nm 50MW dot type laser module

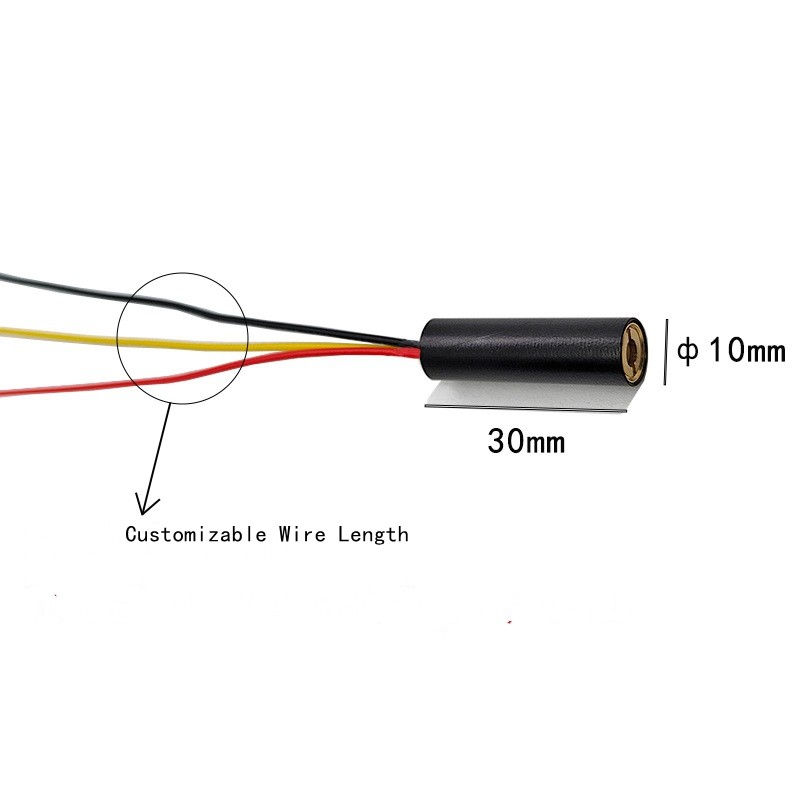

Size: 10x30mm(Other sizes can be customized)
Material: Aviation aluminum (all-metal casing)
Surface treatment/color: Black, with insulating oxide mist black treatment on the surface
Output wavelength: 850nm ± 10nm(Other wavelengths can be customized: 635nm, 780nm, 808nm, 940nm, 980nm)
Exit pupil light power: <50mW(Other powers can be customized)
Range: <600 meters (In indoor environments, lasers may be disturbed by ambient light, so the distance may vary.)

Spot shape and size: Point-like light, elliptical, less than 15mm at 10m

(can be adjusted according to the customer's required distance for the best effect)

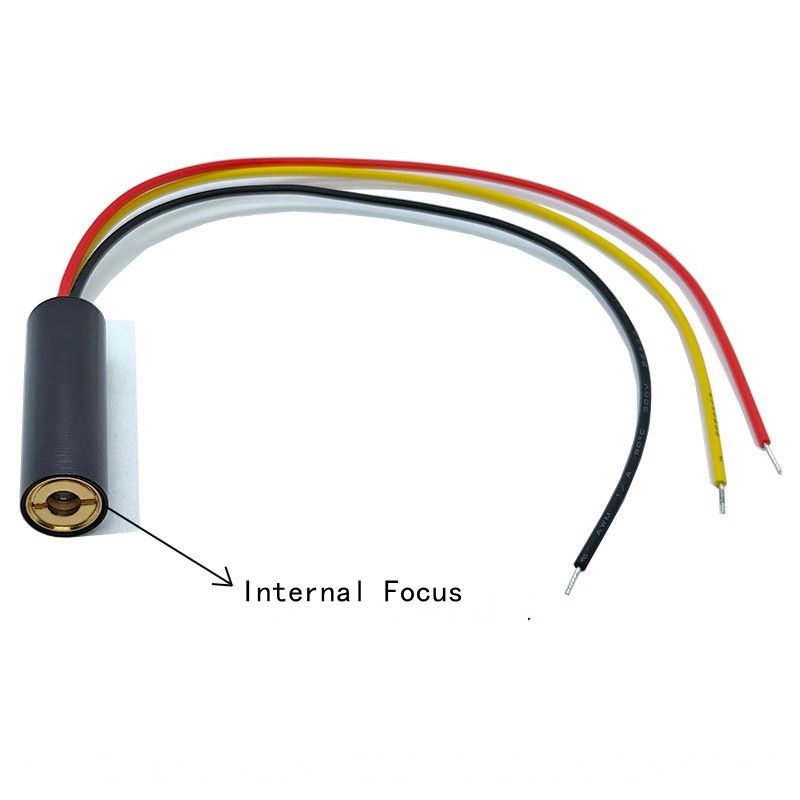

Focusing mode: Adjustable focus or fixed focus (optional, adjustable focus is set by default)
Circuit control: TTL signal modulated frequency line (modulated frequency 0-100KHz)
Working voltage: 2.8-5.2VDC
Working current: <130mA
Operating temperature: -10℃ to +50℃
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours

Tail wire: 26# red, black and yellow wires, approximately 15cm long

(photographed together with the power adapter, it comes with a 1-meter-long DC female plug wire)

Safety level: CLASS III
Package content: One laser

Application:  It can be used in various products such as industrial laser positioning,

sights, laser flashlights, instruments and equipment, medical equipment (health care devices),

military, anti-counterfeiting security, stage lighting, tools, USB flash drives, mobile phones,

projection teaching page-turning pens, temperature measuring (distance measuring) devices,

leveling devices, line marking devices, levels, electronic production enthusiasts, indoor and outdoor
