Point laser module

multiple wavelengths and powers available small-sized laser module

multiple wavelengths and powers available small-sized laser module

Product Item : 610FBC
Category： Point laser module

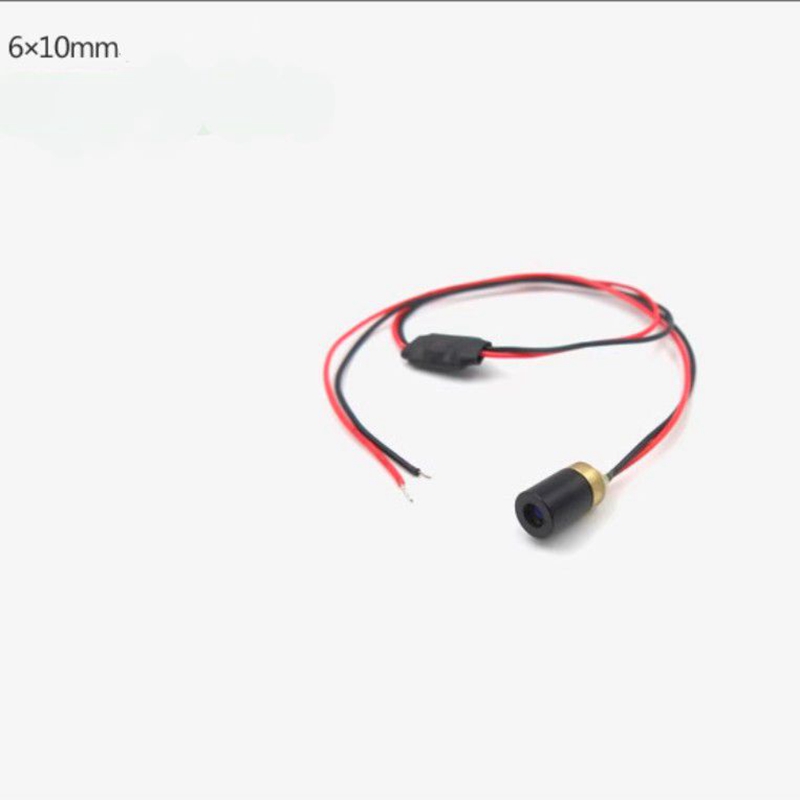

Specifications: 6×10mm small-sized module
Installation method: Direct assembly
Wavelength: 520/450nm
Wavelength: Green light series/Blue-violet light series/Blue light series/Sky blue light series (customizable)
Attachment INQUIRY EMAIL

Power supply voltage: 2.8-5.2V
Power: Optional (The higher the power, the higher the brightness and the farther the irradiation distance)
Overall dimensions: 610mm (excluding the circuit board. The width of the circuit board is 7.6mm and the length is 18mm)
Optional dimensions: 711mm, 811mm, 1015mm. Other dimensions can be customized.
Advantages:
◆ External adjustment structure, the light spot is clear, bright, and soft without being dazzling;

◆ The size of the light spot can be adjusted from 1mm to several

centimeters to meet your different usage requirements;

◆ Brand new original tube core, Taiwanese lens, can be kept on for 24 hours a day;

◆ Intelligent drive board with imported IC, can support a wide range of power supplies,

and other voltages can be customized;

◆ The shell is made of copper, which can not only dissipate heat effectively but also prevent shock,

resist drops, and protect against static electricity;

◆ High-temperature resistant and corrosion-resistant wires,

suitable for all-weather and all-environment use;

◆ Wavelength, power, wire length, working distance, light spot effect, etc.

can all be customized according to customer requirements.
