Dot laser module

6X21mm 635nm 1mW red dot laser module

Product Item : RP635NM6X21
Category： Dot laser module
Specification: 6X21mm, 635nm, 1mW
Installation method: Surface mount
Wavelength: 635nm
Supply voltage: 2.8V - 5.2V
INQUIRY EMAIL

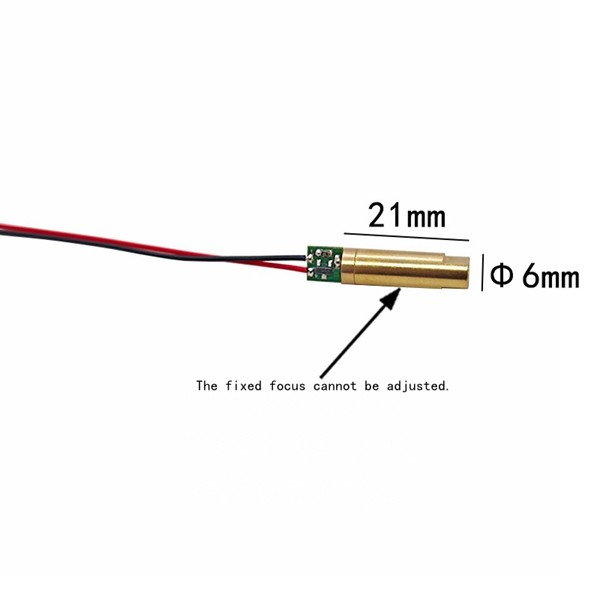

Size :6x21mm
Material: copper (all-metal casing)

Turn the front knob left and right to adjust the size of the light spot.

The fixed focus cannot be adjusted.

Surface treatment/Black color : brass-colored casing
Output wavelength: 635nm ± 10nm(Other wavelengths can be customized,)
Exit pupil light power: <1mw(Other powers can be customized)
Range: <50meters (In indoor environments, lasers may be disturbed by ambient light, so the distance may vary.)
Spot shape and size:dot Oval（Focus is adjustable per customer’s distance needs.）
Focusing mode: fixed focus or Adjustable focus
Circuit control: APC circuit (customizable TTL)
Working voltage: 2.8-5.2VDC
Working current: <30mA
Operating temperature: -10 ° C to +40 ° C
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours

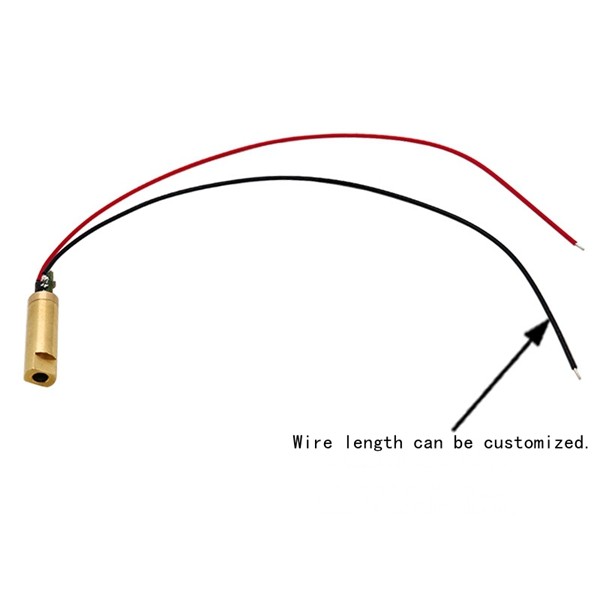

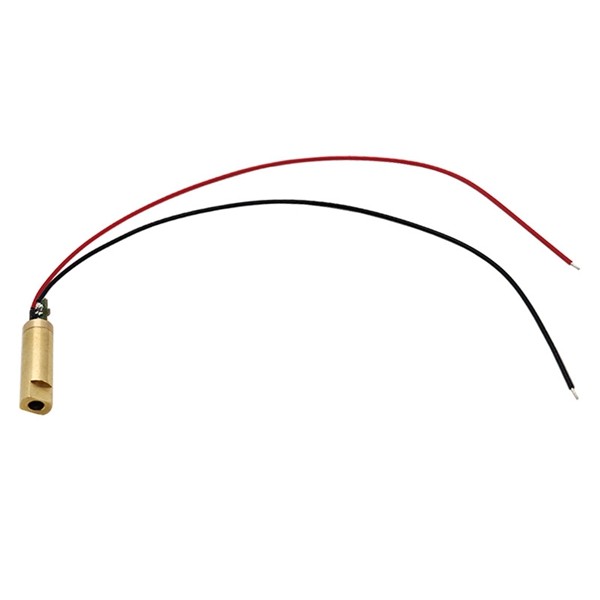

Tail wire: 28# red and black electronic wire, approximately 15cm long

(photographed together with the power adapter, it comes with a 1-meter-long DC female plug wire)

Safety level: CLASS II
Package content: One laser

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights,

Instruments & Equipment, Medical Devices (Healthcare Equipment), Military Use,

Anti-Counterfeiting & Security, Stage Lighting, Tools, USB Drives, Mobile Phones,

Presentation Clickers, Temperature (Distance) Measuring Instruments, Laser Levels,

Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.

Tags: red dot laser module
