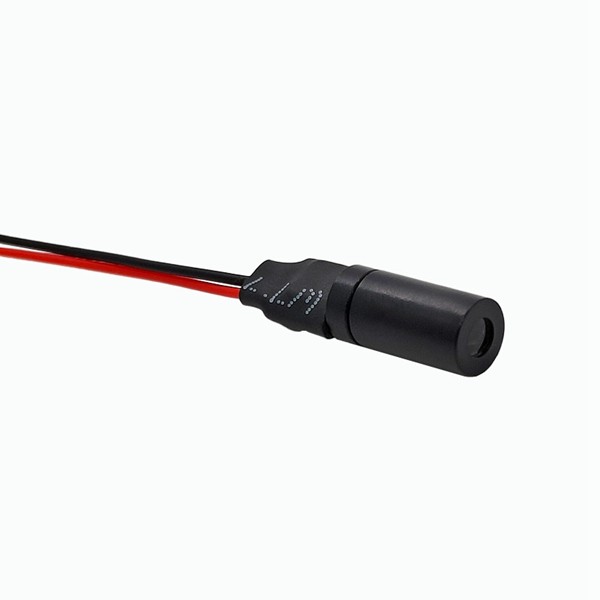

Material: Aviation aluminum (all-metal casing)
Surface treatment/Black color : surface insulation oxidation mist black treatment
Operating temperature: -10℃ to +50℃
Output wavelength: 650nm ± 10nm(Other wavelengths can be customized,)
Exit pupil light power: <1mw(Other powers can be customized)
Range: <3meters (Cross-line light, adjustable light thickness, line width less than 1mm at 0.5m)
Light diffusion Angle:15° 30°45°60°90°110°
Focusing mode: fixed focus or Adjustable focus
Circuit control: APC circuit （can be custom TTL）
Working voltage: 2.8-5.2VDC
Working current: I<30mA
Operating temperature: -10 ° C to +50 ° C
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours

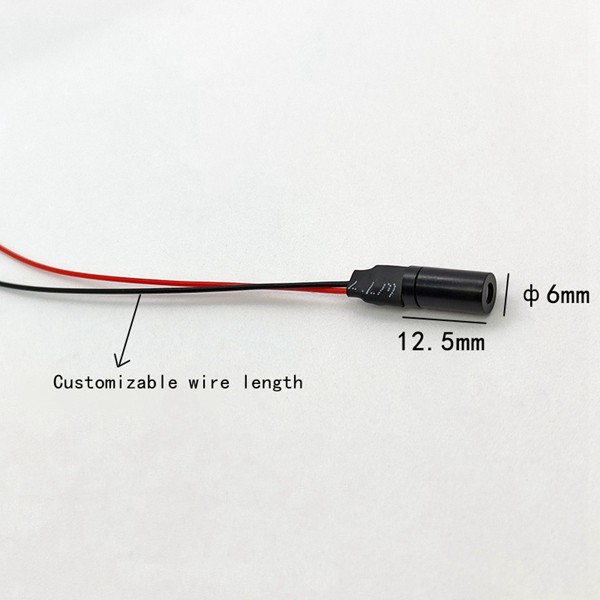

Tail wire: 28# red and black electronic wire, approximately 15cm long
(photographed together with the power adapter,
it comes with a 1-meter-long DC female plug wire)
Safety level: CLASS II
Package content: One laser
Applications: Industrial Laser Positioning, Sighting Devices,
Laser Flashlights, Instruments & Equipment, Medical Devices
(Healthcare Equipment), Military Use, Anti-Counterfeiting &
Security, Stage Lighting, Tools, USB Drives, Mobile Phones,
Presentation Clickers, Temperature (Distance) Measuring Instruments,
Laser Levels, Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
