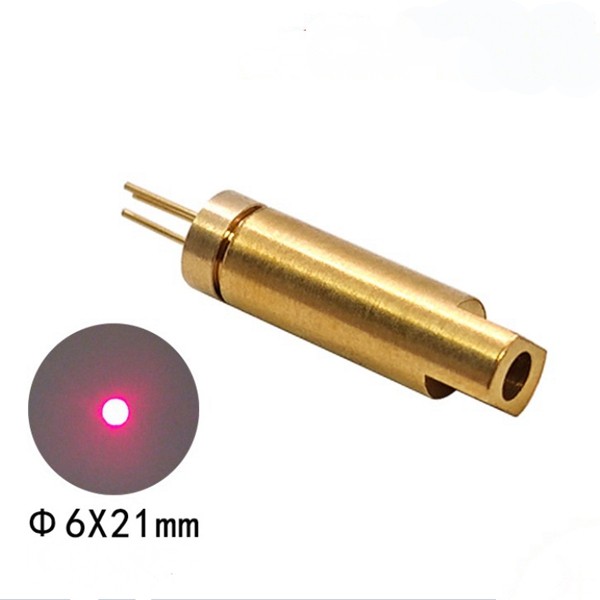

  • 6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module
  • 6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module
  • 6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module
  • 6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module
6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module

6×21mm 635nm 10mW Focus-adjustable 3-pin Driver-free Red Laser Module

  • Product Item : 6X21mm 635nm 10mW
  • Category: Dot laser module
  • Specification: 6x21mm, 635nm, 10MW
  • Installation method: Plug-in installation
  • Wavelength: 635nm
  • INQUIRY   EMAIL
Output wavelength: 635nm ± 10nm(Other wavelengths can be customized,)
Exit pupil light power: <10mw(Other powers can be customized)

Range: <200meters (In indoor environments,

lasers may be disturbed by ambient light, so the distance may vary.)

Spot shape and size:dot Oval(Focus is adjustable per customer’s distance needs.)
Focusing mode:  fixed focus or Adjustable focus
Circuit control: APC circuit
Working voltage: 2.1-2.5VDC
Working current: I<50mA
Operating temperature: -10 ° C to +50 ° C
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours
Safety level: CLASS IIIB
Package content: One laser

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights,

Instruments & Equipment, Medical Devices (Healthcare Equipment),

Military Use, Anti-Counterfeiting & Security, Stage Lighting, Tools, USB Drives,

Mobile Phones, Presentation Clickers, Temperature (Distance) Measuring Instruments,

Laser Levels, Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
