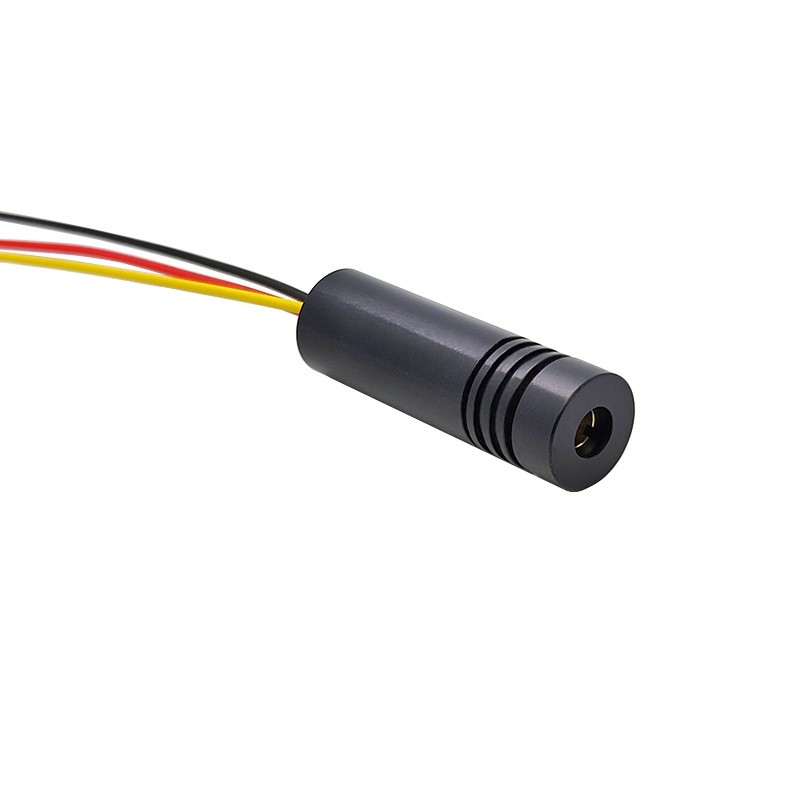

9×21mm 650nm 5mW laser module

  • Product Item : 650NM5MW
  • Category: Line Laser module
  • Rated power: Less than 5mW
  • Rated current: Less than 35mA
  • Packaging specification: Cylindrical type (9.0mm diameter)
  • Specification: 9x21mm, 650nm, 5MW flat-wire
  • INQUIRY   EMAIL
Range: <3 meters (In indoor environments, the clarity of the laser line may vary due to interference from ambient light.)
Spot shape and size: Linear light shape, line width less than 1.5mm at 0.5m
Light diffusion Angle: 5°, 15°, 30°, 45°, 60°, 90°, 110°, 130°(optional).        Default emission is 90°

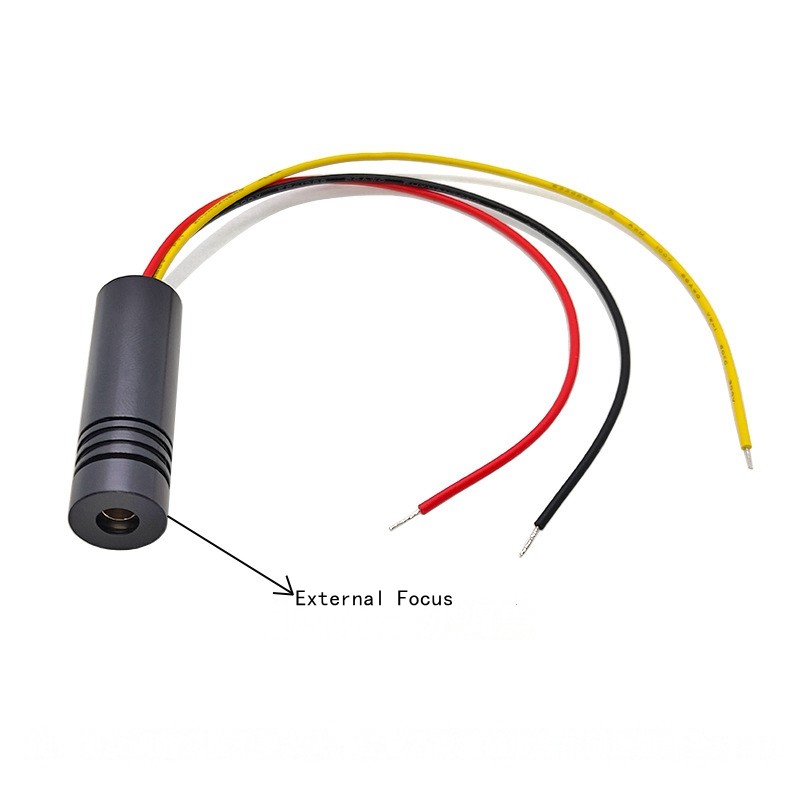

Focusing method: Fixed focus
Circuit control: APC line (customizable TTL)
Working voltage: 2.8-5.2VDC
Working current: l <35mA
Operating temperature: -10℃ to +50℃
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours

Tail wire: 26# red and black electronic wire, approximately 15cm long

(photographed together with the power adapter, it comes with a 1-meter-long DC female plug wire)

Safety level: CLASS IIIA
Package content: One laser
Purpose:

It can be used in products such as industrial laser positioning, aiming devices, laser flashlights,

 instruments and equipment, medical equipment (health care devices), military, anti-counterfeiting security,

stage lighting, tools, USB flash drives, mobile phones, projection teaching page-turning pens,

temperature measuring (distance measuring) devices, leveling devices, line marking devices,

levels, electronic production enthusiasts, indoor and outdoor decoration, etc.
