Dot laser module

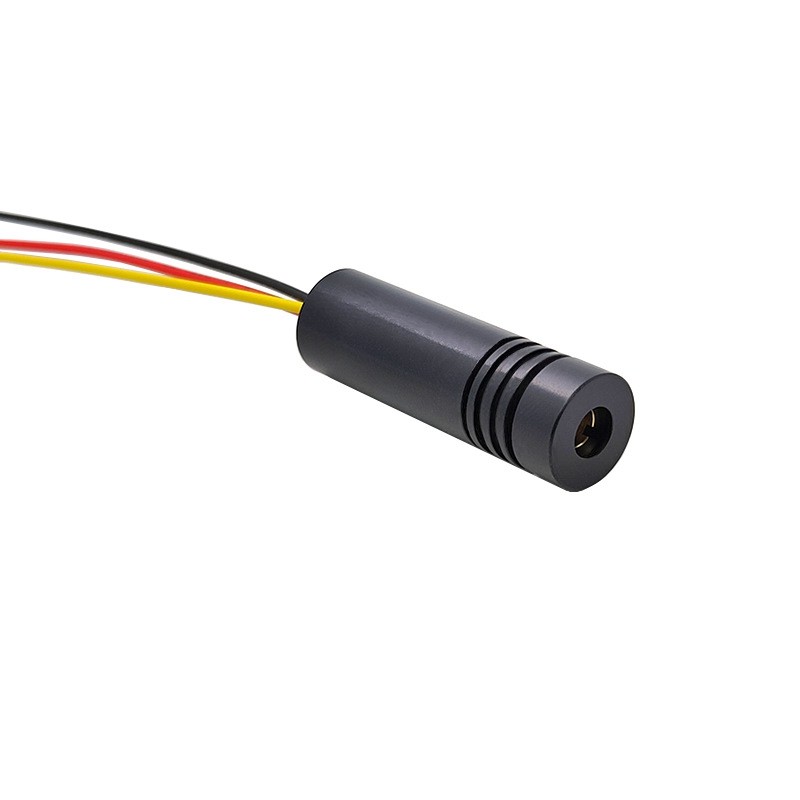

12×40mm 980nm 10mW Infrared Laser Module

Product Item : 980NM
Category： Dot laser module
Specification: 12×40mm980nm 10mW Dot Type
Mounting Type: Plug-in Installation
Product Series: Laser Category
Rated Current: <45mA
INQUIRY EMAIL

Exit Pupil Power: <10mW (Custom Powers Available)
Range: <200 Meters (Indoor Environment; Distance May Vary Due to Ambient Light Interference)
Spot Shape Size: Dot/Elliptical, <10mm at 12m
Focus Mode: Adjustable Focus
Circuit Control: TTL Signal Frequency-Modulable Circuit (Modulation Frequency: 0~100KHz)
Operating Voltage: 2.8~5.2VDC
Operating Current: l<45mA
Operating Temperature: -10℃~+40℃
Storage Temperature: -20℃~+70℃
Service Life: Continuous Operation >10,000 Hours

Tail Wires: 26# Red/Black/Yellow Wires, ~15cm Length

(1m DC Female Plug Cable Included When Purchased with Power Adapter)

Safety Class: Class IIIB
Package Content: 1 Laser Module

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights, Instruments & Equipment,

Medical Devices (Healthcare Equipment), Military Use, Anti-Counterfeiting & Security, Stage Lighting, Tools,

USB Drives, Mobile Phones, Presentation Clickers, Temperature (Distance) Measuring Instruments,

Laser Levels, Line Lasers, Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.
