Dot laser module

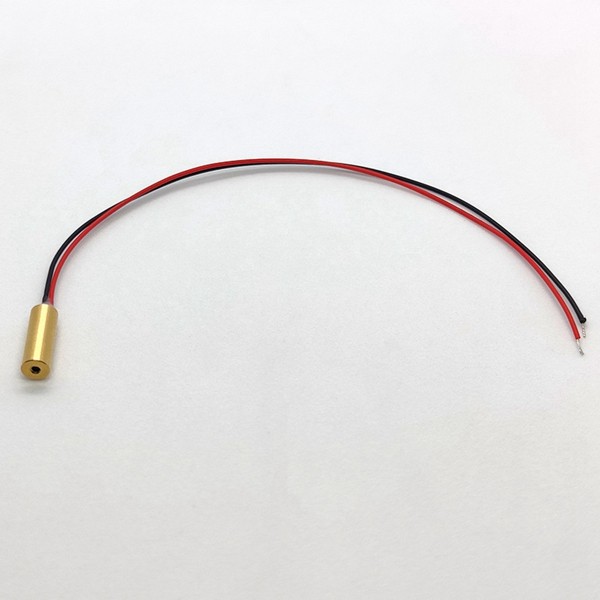

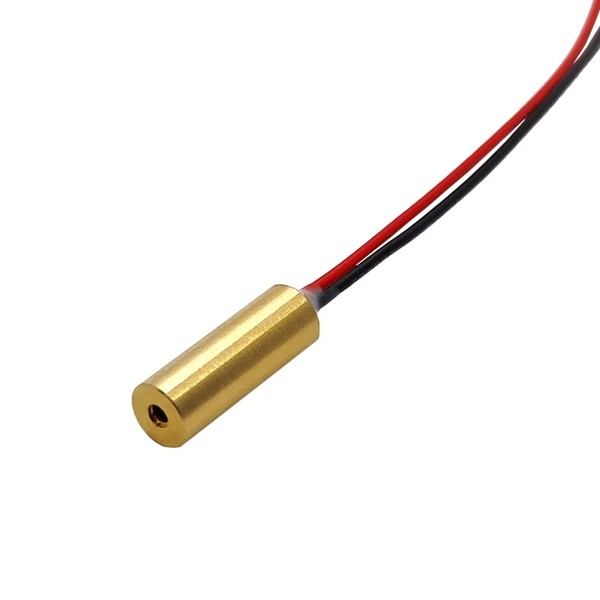

5X14mm980nm10mW5V dot red infrared laser module

5X14mm980nm10mW5V dot red infrared laser module

Product Item : 5X14mm980nm10mW
Category： Dot laser module
Specification: 5x14mm 980nm 10MW
Installation method: Plug-in installation
Wavelength: 980nm
Supply voltage: 2.8V to 5.2V
INQUIRY EMAIL

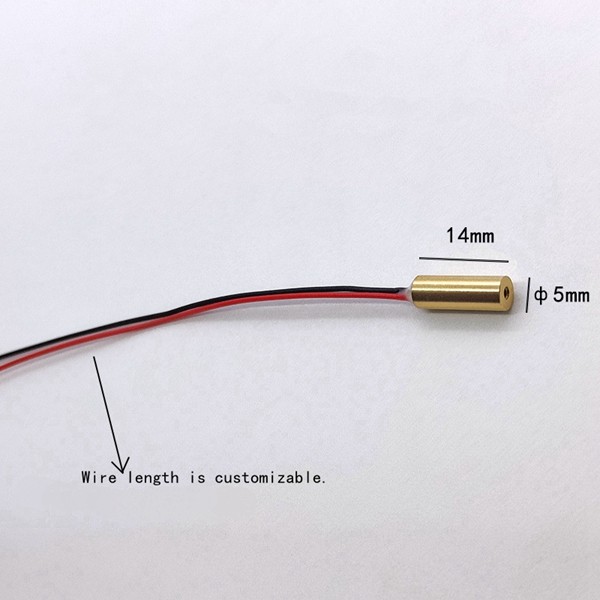

Size: 5x14mm(Other sizes can be customized.)
Material: Copper (all-metal casing)
Surface treatment/color: Brass shell (natural color, black shell available)

Surface treatment/color: Brass shell (natural color,

can be made into black shell, surface insulation, oxidation and matte black treatment)

Accessory type: Laser head
Operating temperature: -10℃ to +50℃
Output wavelength: 980nm ± 10nm(Other wavelengths can be customized,)
Exit pupil light power: <10mw(Other powers can be customized)

Range: <200meters (In indoor environments,

lasers may be disturbed by ambient light, so the distance may vary.)

Spot shape and size:dot Oval（Focus is adjustable per customer’s distance needs.）
Focusing mode: fixed focus
Circuit control: APC circuit (customizable TTL)
Working voltage: 2.8-5.2VDC
Working current: I<45mA
Operating temperature: -10 ° C to +50 ° C
Storage temperature: -20℃ to +70℃
Service life: Continuous output/usage > 10,000 hours

Tail wire: 28# red and black electronic wire, approximately 15cm long

(photographed together with the power adapter,

it comes with a 1-meter-long DC female plug wire)

Safety level: CLASS IIlB
Package content: One laser

Applications: Industrial Laser Positioning, Sighting Devices, Laser Flashlights,

Instruments & Equipment, Medical Devices (Healthcare Equipment),

Military Use, Anti-Counterfeiting & Security, Stage Lighting, Tools,

USB Drives, Mobile Phones, Presentation Clickers, Temperature

(Distance) Measuring Instruments, Laser Levels, Line Lasers,

Spirit Levels, Electronic Hobbyists, Indoor & Outdoor Decoration, etc.

Tags: Laser head
